Features

We at WLT generate water based on an AWG technology (atmospheric water generation). Liquid absorption gives us the opportunity to flexibly scale up the water production at ultra pure quality. Almost everywhere.

We do not see ourselves as a technology that displaces others. Rather, we are expanding the water supply, sustainably. Besides and in addition to the existing technologies like ground water and seawater desalination.

Advantages

Disadvantages

Technology in general

Large climate area of application,
high water quality

Technological maturity

Large climate area of application,
high water quality,
endless scalability,
technological maturity

High connected load for energy because of plant sizes

Technology

The ambient air, sucked by a fan, is brought into contact with a hygroscopic salt solution. This binds part of the water from the air and heats it in the next step, desorption. Here, the highly purified water is separated from the salt for further use, which is recycled in concentrated form. The salt solution is practically a loss-free component of the absorption circuit.

The technical process allows water production down to a humidity of 10%. Certification of the WLT absorption unit as well as the overall product are scheduled for summer 2023. Quantities of 100 or even more than 1,000 liters per second (or 3,600 m³ per hour) are feasible.

Our Products

  • Modul S

    Modul S

    consisting of: 35 absorption towers, 9 t/h desorber, Power Management incl. MCT, hydraulic components incl. process storage
    av. output: 2, 5 L/s ultrapure water (<20 ppm resp. < 20 µS/cm)
    space requirement: ca. 5.500 m²

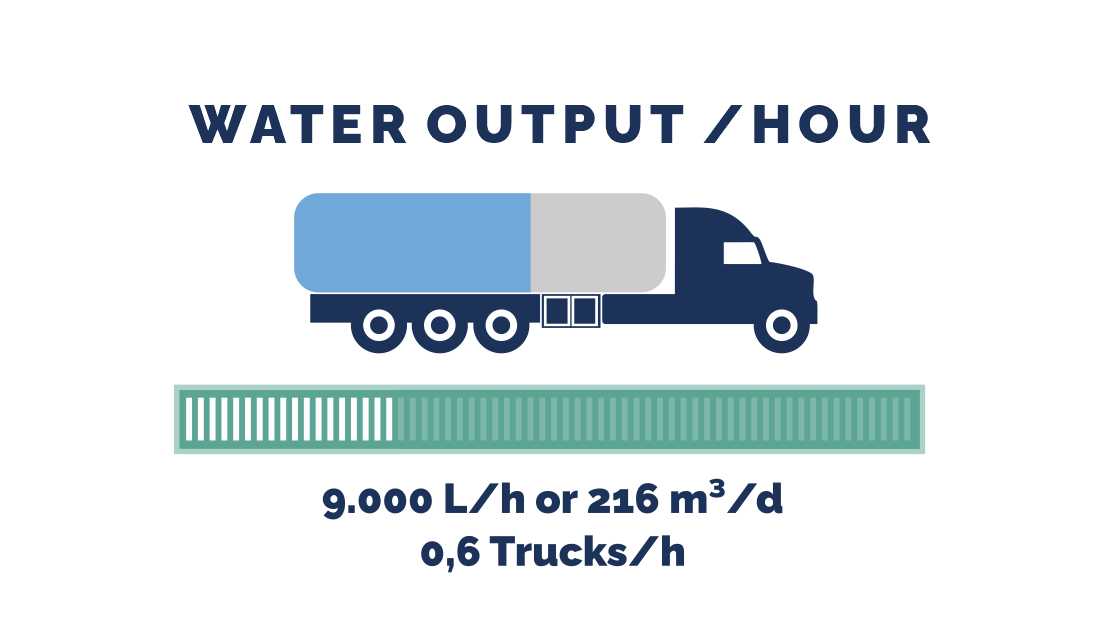

    that means: 9.000 L/h or 216 m³/d

  • Modul M

    Modul M

    consisting of: 105 absorption towers, 27 t/h desorber, Power Management incl. MCT, hydraulic components incl. process storage
    av. output: 7,5 L/s ultrapure water (<20 ppm resp. < 20 µS/cm)
    space requirement: ca. 18.700 m²

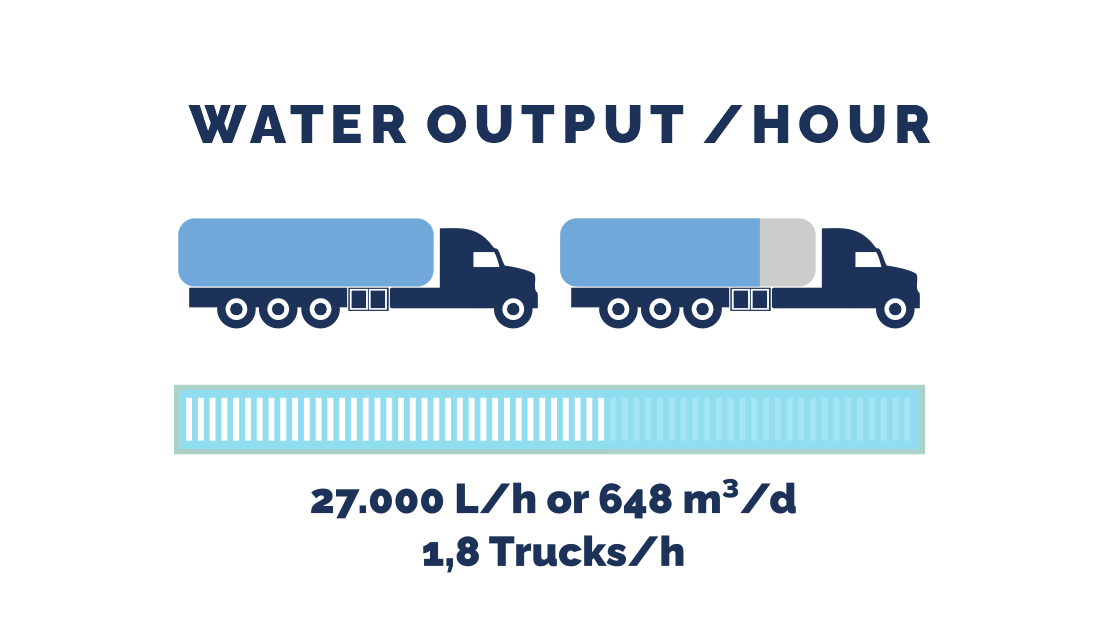

    that means: 27.000 L/h or 648 m³/d

  • Modul L

    Modul L

    consisting of: 210 absorption towers, 54 t/h desorber, Power Management incl. MCT, hydraulic components incl. process storage
    av. output: 15 L/s ultrapure water (<20 ppm resp. < 20 µS/cm)
    space requirement: ca. 38.500 m²

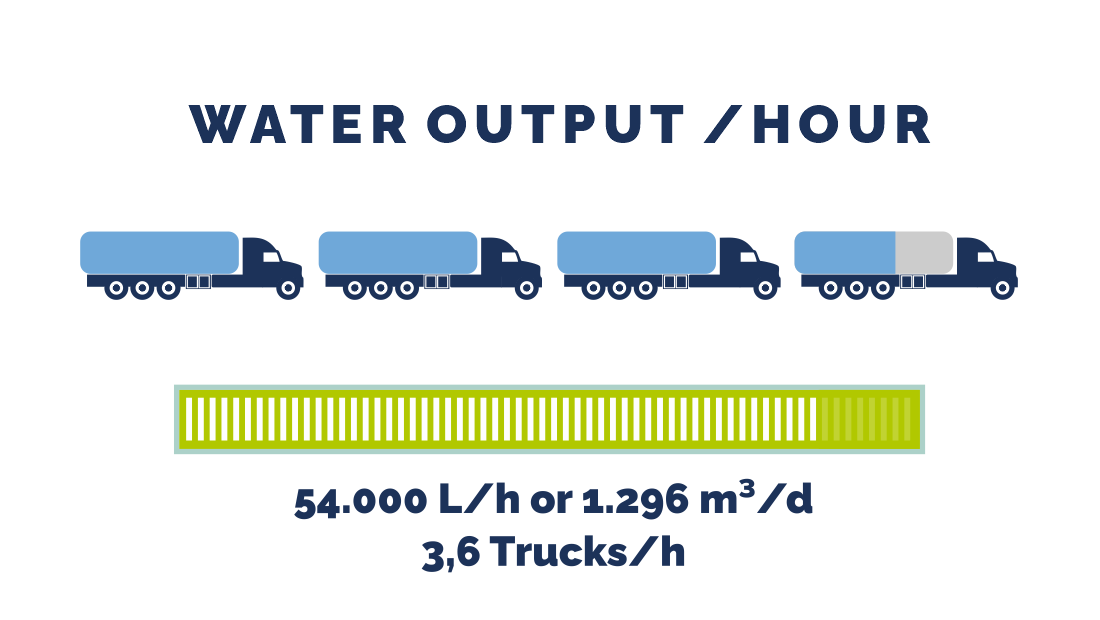

    that means: 54.000 L/h or 1.296 m³/d

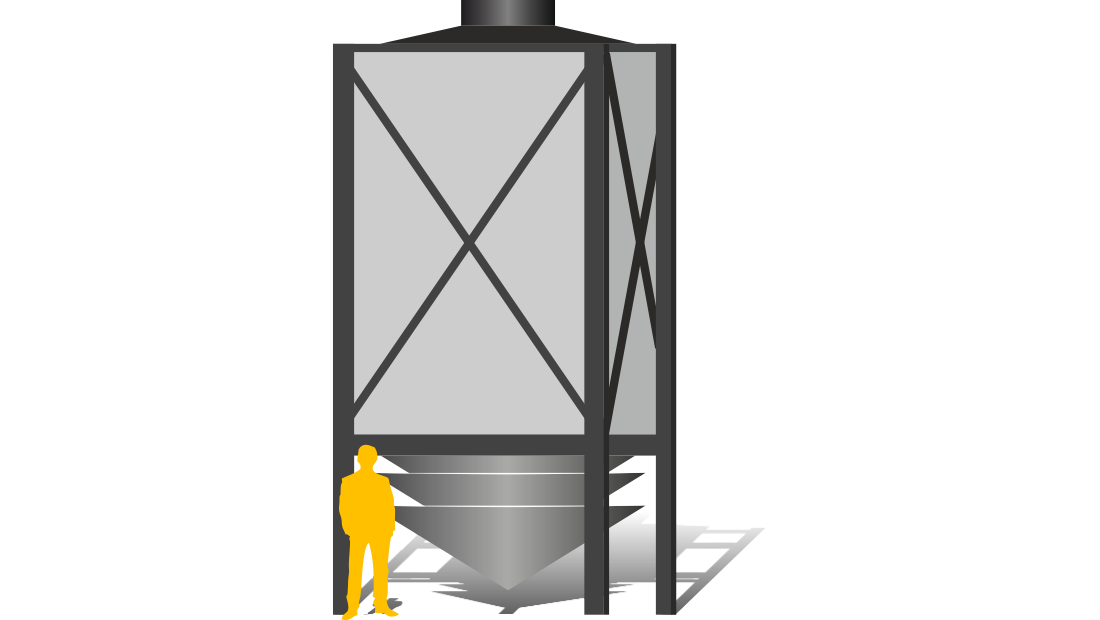

  • Modul XA

    Modul XA

    consisting of: 35 absorption towers, Power Management incl. MCT, hydraulic components incl. process storage
    purpose: to exploit the capacity of the desorber, even in locations with lower humidity
    space requirement: ca. 4.000 m²

WLT water can easily be mineralized for drinking waters. It could also be enriched with appropriate minerals, fertilizers and nutrients according to the needs of the customer - adapted to the different needs of the application.

Technical Features
